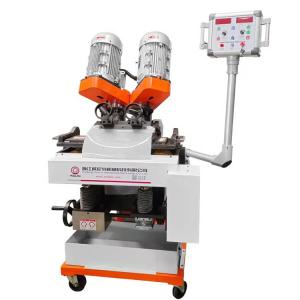

PB-100B Double cutter head automatic walking milling machine
Main Features
The pb-100b milling machine adopts double cutter heads, which cuts more lightly and saves time and effort. Double frequency conversion speed regulation, both spindle and feed speed are adjustable, with high precision. Bevel form: V, Y, K, X, etc., bevel angle can be adjusted from 0 to 90 degrees, easy to operate.
PB-100B technical parameter
| Power supply voltage | AC 380V 50Hz |
| Total power | 6520W |
| Spindle speed | 750-1440r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 0-80mm |
| Single bevel width | 0-20mm |
| Bevel angle | 0°to 90° |
| Clamping plate thickness | 6-100mm |
| Clamping board width | >100mm |
| Clamping plate length | >300mm |
| Working heightWorking height | 820-860mm |
| weight | 430kg |
| Processing material | Carbon steel, stainless steel, aluminum alloy, copper, composite board |
Products Show
Product components
Double cutter head, more brisk
High-quality knives, excellent quality, strong and durable
Precisely control the feed speed, easy to operate
Engineering case
Scope of application
Corporate style
